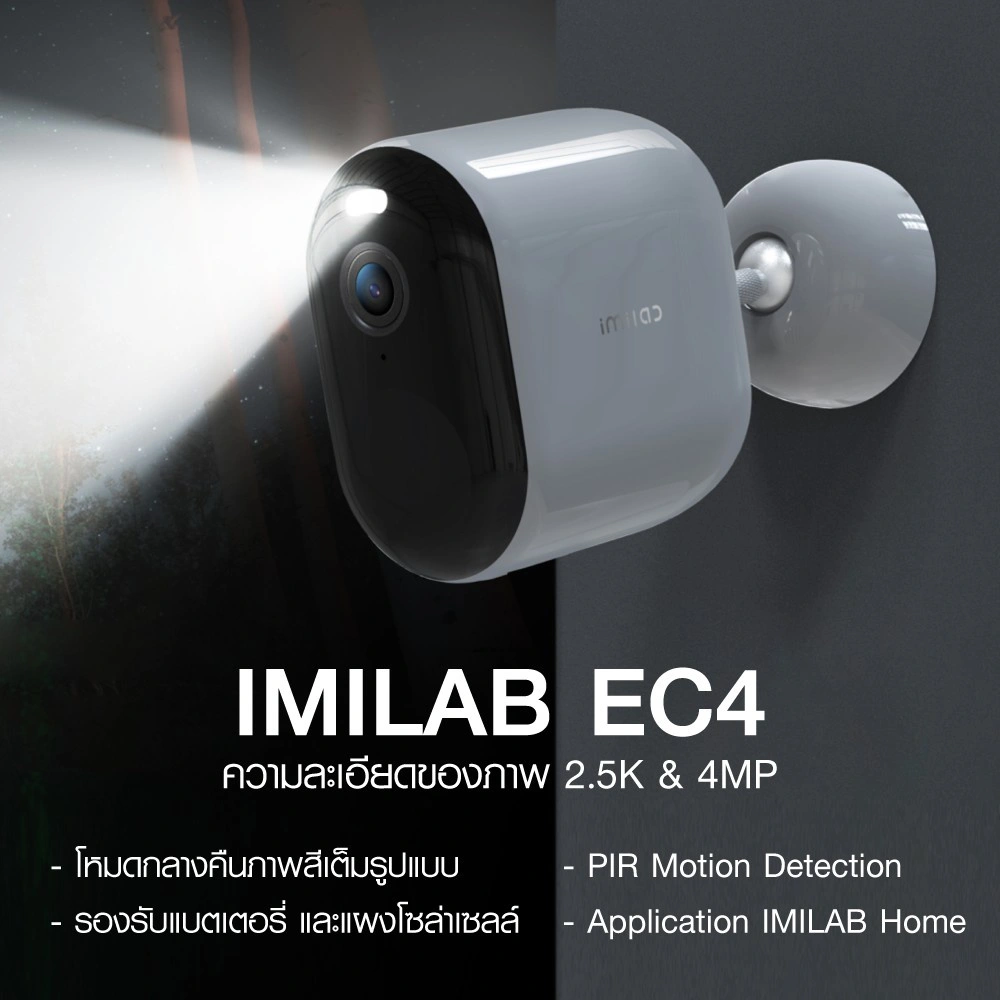

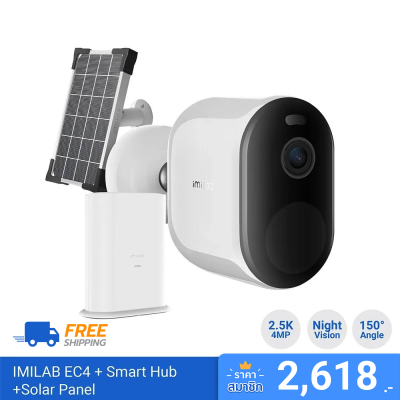

IMILAB EC4 (GB V.) outdoor security camera delivers crystal-clear image quality, showing detailed images even when zoomed in. It features a built-in solar panel for charging and a built-in battery.
Warranty Conditions:
- EC4 Camera (12-month warranty)
- Smart Hub (12-month warranty)
- Solar Panel (6-month warranty)
For inquiries, warranty information, and after-sales service, please contact us via the store's CHAT BOX.
*** Note ***
The "camera only" option is only an add-on to increase the number of cameras. "This product is only available with the main camera kit (camera + Smart Hub). You cannot purchase the camera separately without a Smart Hub (the system requires a Smart Hub for connection).
*** The IMILAB Smart Hub can connect up to 5 IMILAB EC4 cameras.*
How to connect the IMILAB EC4 camera to an iPhone Series 15 or iOS 18.1 or higher (for first-time connections):
1. Download and register an account in the IMILAB HOME app.
2. Connect the device to the IMILAB HOME app on your Android phone or iPhone (series 15 or lower, iOS 18.1 or lower).
3. Once connected, log in to your iPhone using the IMILAB account that was used to connect the camera to continue using the device.
** For further inquiries, please contact us via the store's chat.
---------------------------------------------------------------------------
[[Product Highlights]]
- Crystal clear 4MP 2.5K image; no pixelation even when cropped to 100%.
- Wide F1.6 aperture for excellent performance in low light conditions.
- 150° wide-angle view for detailed edge imaging.
- Color Night Vision: Clear and vibrant colors in night mode.
* Switches to black and white in complete darkness.
- Human and motion detection: Accurate and fast.
* Instant phone alert upon detection.
- Sound and light deterrent: Works in conjunction with the detection system.
* Supports solar panel operation (sold separately).
- Durable: IP66 waterproof and dustproof rating.
- Two-way audio: Built-in microphone and speaker for communication.
- IMILAB Home app connectivity:
* Configure settings and view real-time footage.
- Easy 3-step installation:
* Camera installation > Gateway installation > App connection.
- Can be installed anywhere, indoors or outdoors. - No problem even outdoors.
- Easy connection via 2.4GHz Wi-Fi network.
- Control via Amazon Alexa and Google Assistant.
- Store data on both Micro-SD Card and Cloud Storage.
* MicroSD Card supports up to 256GB (FAT32).
- 5200mAh battery, lasts up to 100 days on a single charge.
** Note: Usage time may vary. Depending on individual usage, performance may vary.
[[IMILAB EC4 Product Information]]
Brand: IMILAB
Model: IMILAB EC4
Model Number: CMSXJ31A
Resolution: 2560 x 1440p
Picture Modes: 2K, 1080p, 360p
Field of View: 150°
Sensor: 4MP
Sensor Size: 1/3"
Aperture: F1.6
Battery: 5200mAh 3.6V
Power Input: 5V/2A
Waterproof Standard: IP66
Two-way Calling: Supported with noise cancellation
Operating Temperature: -20°C ~ 50°C
Connectivity: 802.11 b/g/n @ Wi-Fi 2.4GHz
Product Dimensions: 82 x 86.8 x 50 mm
[[IMILAB Smart Hub Product Information]]
Brand: IMILAB
Model: IMILAB Smart Hub
Model Number: CMWG31B
Power Input: 12V/1.5A
Operating Temperature: -10°C ~ 45°C
Storage: MicroSD Card expandable up to 256GB (FAT32)
Product Dimensions: 89.2 x 38 x 101.3 mm
[[IMILAB EC4 Package Contents]]
1x IMILAB EC4 Security Camera
1x Micro-USB Charging Cable (2 meter length)
1x Mounting Base
1x Screw Set
[[IMILAB Smart Hub Package Contents]]
1x IMILAB Smart Hub
1x Adapter
1x LAN Cable
**Note**
For optimal performance of the Micro-SD Card (256GB),
the Micro-SD Card must be formatted to FAT32 file type.
*A 256GB Micro-SD Card is required.
If not formatted to FAT32, only 64GB capacity will be usable.
------------------------------
️ Warranty Conditions ️
The product is warranted under the specified conditions, covering damage caused by manufacturing defects and excluding damage caused by misuse. The conditions are as follows:
- Warranty covers defective products or parts that are substandard from the factory.
- The warranty does not cover damage caused by misuse, accidents, natural disasters, falls, or repairs.
- Products with modifications, breakage, damage, incomplete parts, or missing parts will immediately void the warranty.
- This warranty does not include peripheral devices or other freebies included in the box, such as charging cables included with different plug models.
️ The buyer must keep the packaging box to verify the purchase with the store in case of warranty claims. Without the box or store documents, the store reserves the right to refuse the warranty claim. This marks the end of the product warranty.
